5-minute tour

This is the shortest path from "I have never used NullRun" to "I shipped an agent to production and it tripped a budget cap." It mirrors the dashboard tour at nullrun.io/onboarding — same five screens, same five CLI commands.

If you want to install first, jump to Install and come back. This tour assumes nullrun is already installed and an API key is exported as NULLRUN_API_KEY.

What you will build

A LangGraph agent that:

1. Calls gpt-4o-mini through the NullRun gate
2. Has a hard $0.50 budget per workflow
3. Trips the circuit breaker when it tries to call send_email
4. Recovers cleanly after you raise the budget

You will see each step land in the dashboard as a real audit row.

Step 1 — Create an organization

If you do not already have one, open nullrun.io/onboarding, pick a name ("Acme AI"), and click Create. The dashboard provisions an organization_id and a default policy_id that allows everything except destructive tools.

What you see

On the dashboard home, a single card shows: organization name, default policy name (Permissive), and an "API keys" tile that is empty until step 2.

Step 2 — Create an API key

In the dashboard:

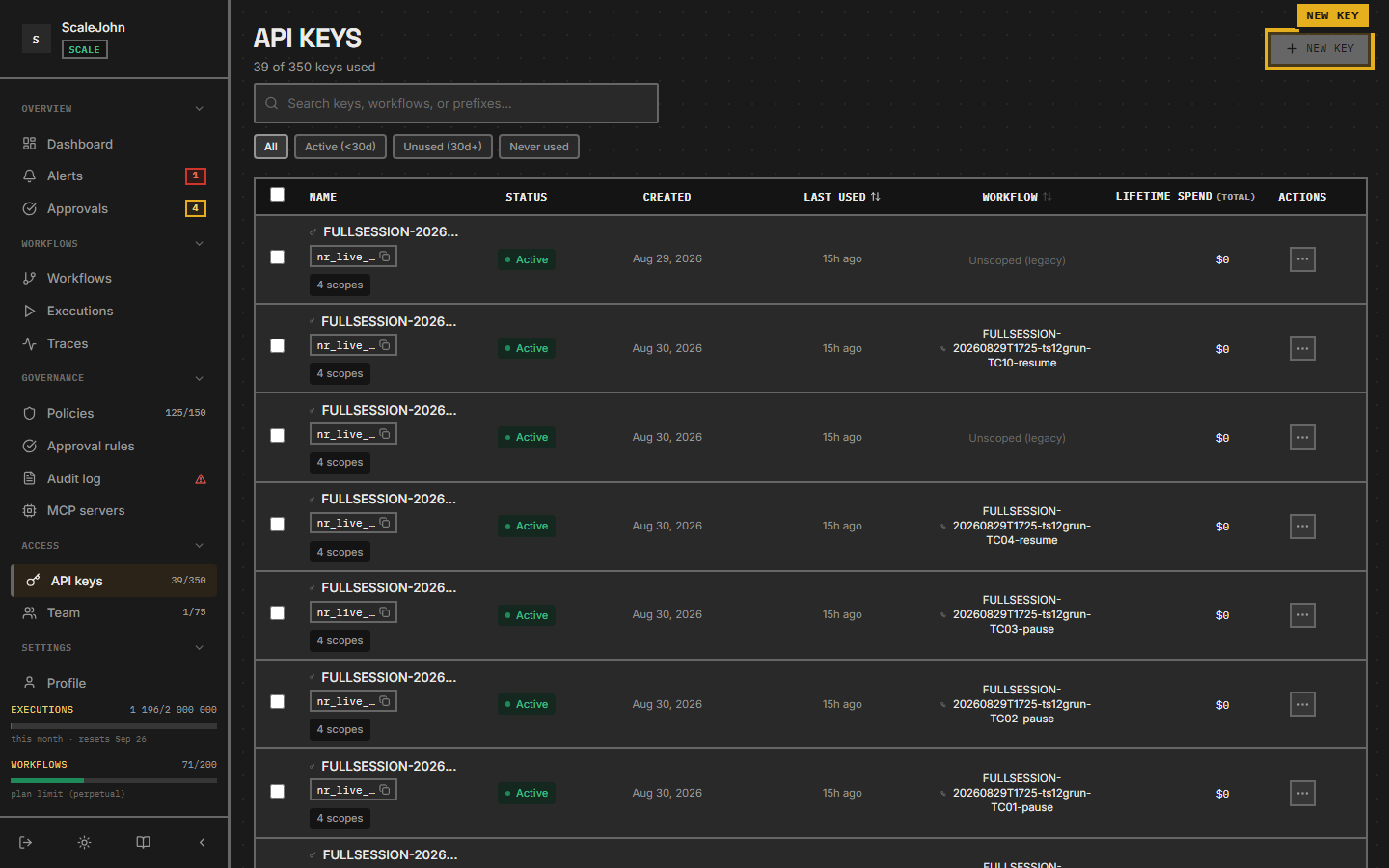

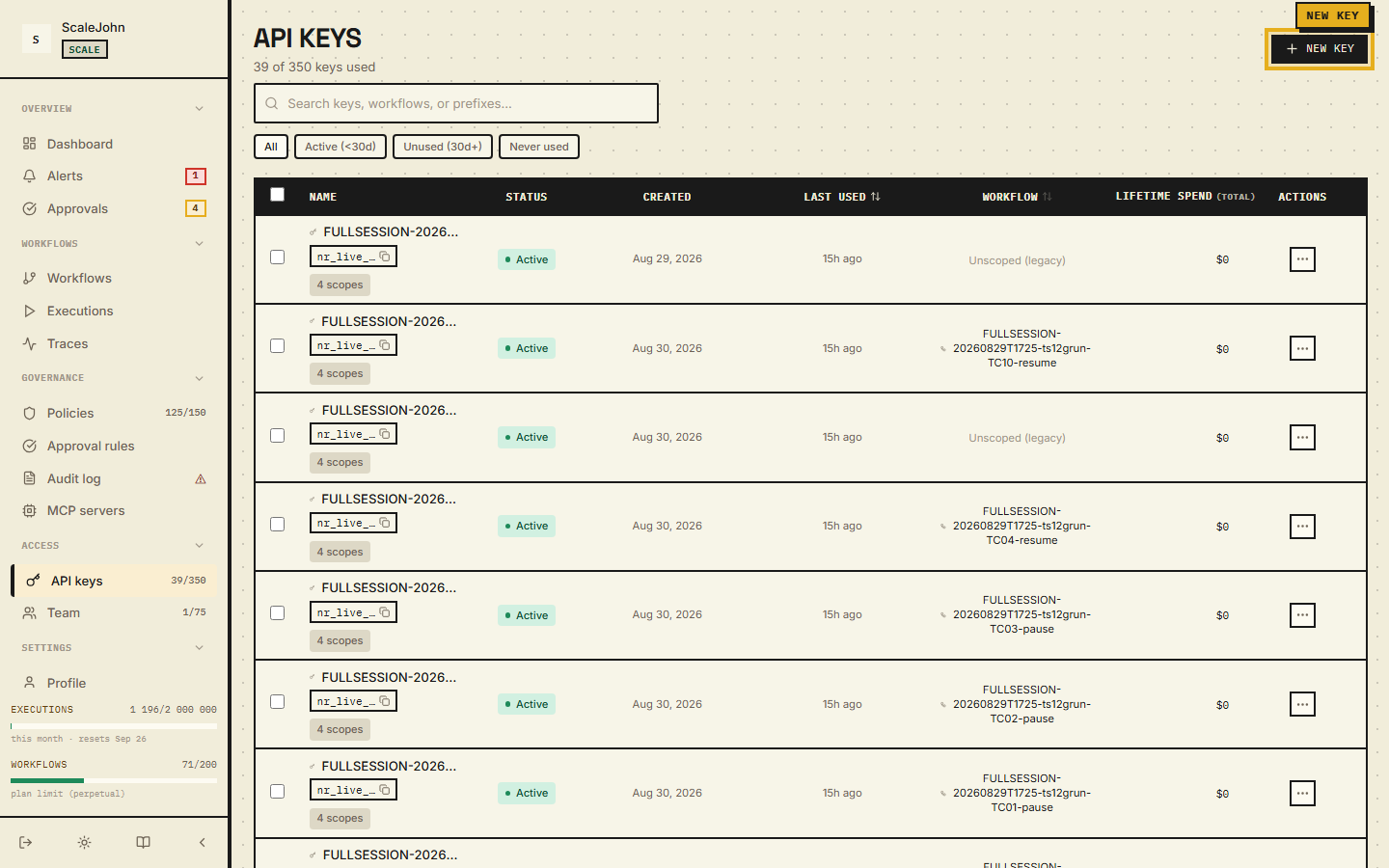

1. In the left sidebar, under Access, click API keys.
2. Click New API key in the top right.
3. In the dialog, pick the Workflow the key belongs to (the tour-agent workflow you just created) and name the key tour-agent. Pick an expiration — Never, 24 hours, 7 days, 30 days, or 90 days.
4. Click Create.
5. Copy the nr_live_… public identifier and the HMAC secret. The secret is shown once — store it in your secrets manager immediately.

API keys · New key

Export both in your shell:

shell

export NULLRUN_API_KEY="nr_live_xxxxxxxxxxxxxxxx"
export NULLRUN_SECRET_KEY="hmac_xxxxxxxxxxxxxxxxxxxx"

Where the HMAC secret lives

The SDK pulls the HMAC secret via POST /api/v1/auth/verify on first use, then caches it in memory. Re-exporting the env var does NOT invalidate an existing cached secret — restart your process to pick up a new one.

Step 3 — Wire up the agent

Create a file tour_agent.py:

tour_agent.py

import os
import nullrun
from nullrun import init, protect, NullRunBudgetError
from langchain_openai import ChatOpenAI

init(api_key=os.environ["NULLRUN_API_KEY"])

llm = ChatOpenAI(model="gpt-4o-mini")

@protect
def ask(question: str) -> str:
    return llm.invoke(question).content

if __name__ == "__main__":
    for i in range(20):
        try:
            print(f"[{i}]", ask("Tell me a one-sentence joke."))
        except NullRunBudgetError as exc:
            print(f"[{i}] BLOCKED:", nullrun.format_user_message(exc))
            break

Run it:

shell

pip install "nullrun[langgraph]" langgraph langchain-openai
python tour_agent.py

You will see ~7–10 successful LLM calls, then BLOCKED: You've used all your support credits. Upgrade to keep chatting. (or whatever your catalog wording is).

Step 4 — Watch the decisions

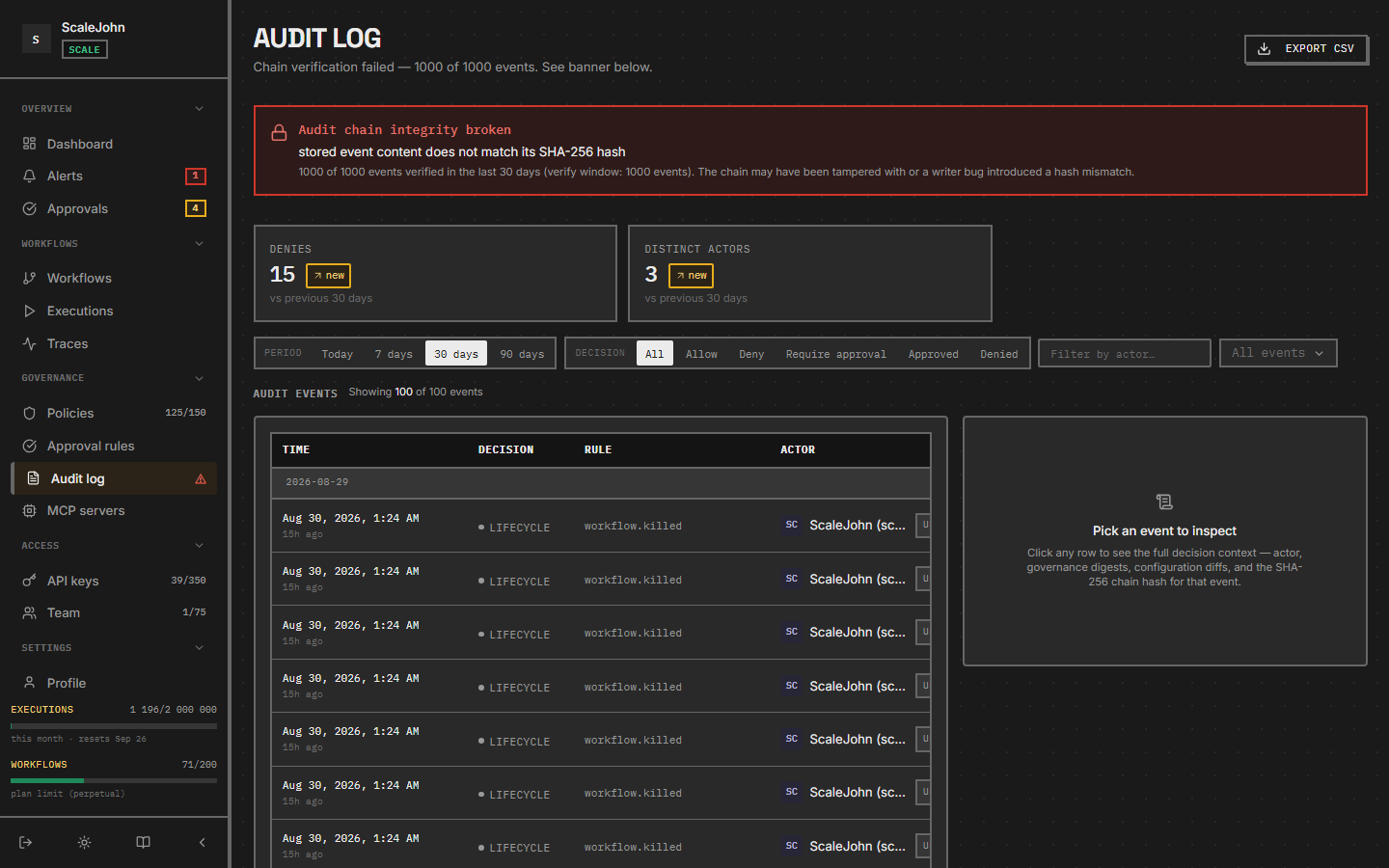

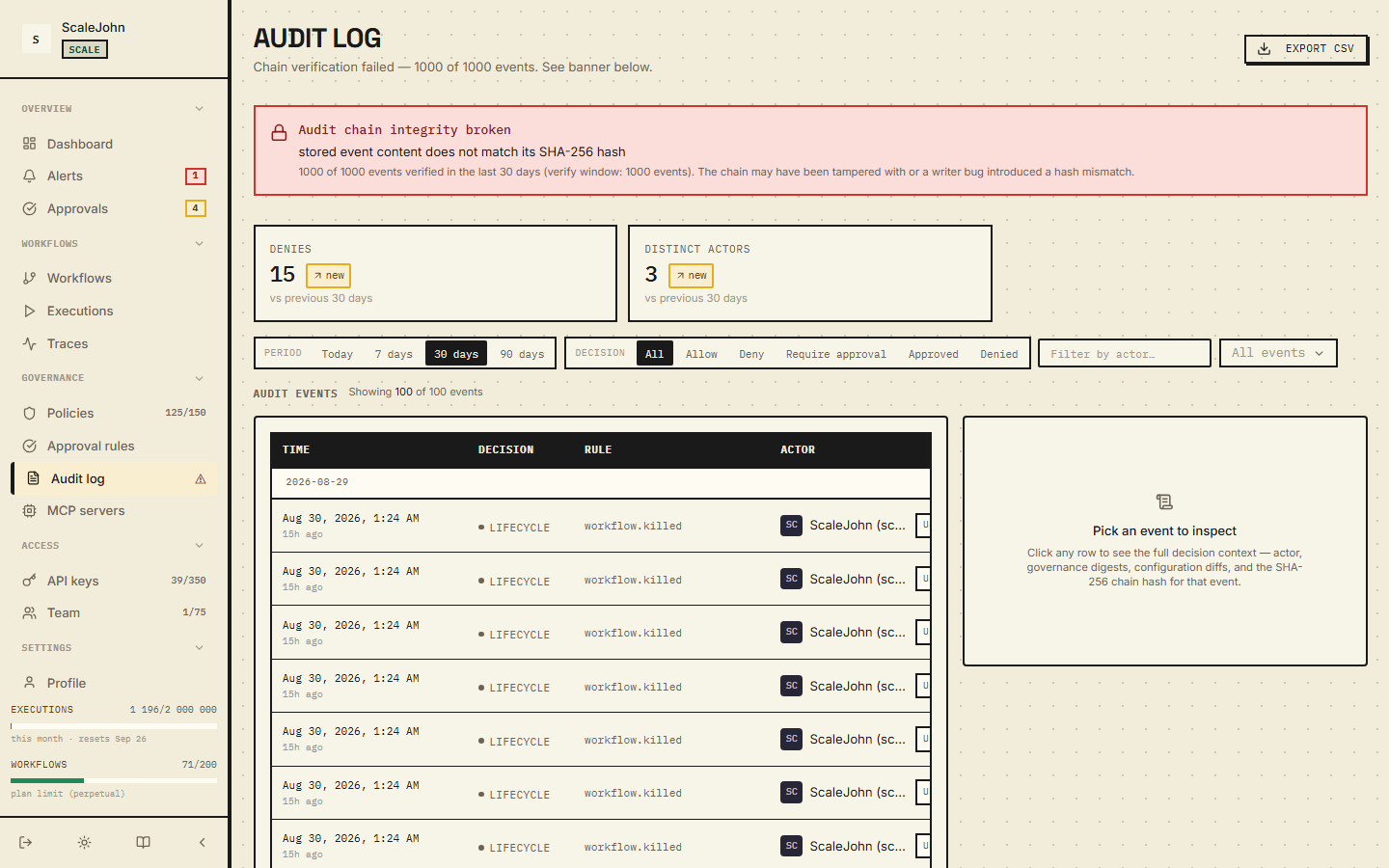

Open nullrun.io/control-center/audit (the dashboard Audit log page, under Governance in the sidebar). You will see:

• One row per @protect call across four columns: Time, Decision, Rule, Actor.
• decision = allow for the first ~7–10 rows. The FilterBar above the table has period preset chips (1h / 24h / Today / 7d / 30d / 90d / All), decision chips, and an event-type selector.
• decision = block on the last row with error_code = NR-B004, wire = BUDGET_HARD_BLOCKED — click the row to open the DetailPanel and see the budget snapshot at the time of the block.

Governance · Audit log

Each row is recorded by the gateway's audit pipeline and surfaces in your own customer's audit trail identically.

Step 5 — Trip a ToolBlock

Edit tour_agent.py and add a second protected function:

tour_agent.py

@protect
def send_email(to: str, body: str) -> None:
    # Pretend SMTP call.
    print(f"SMTP → {to}: {body}")

Then call it from __main__:

tour_agent.py

# After the loop:
try:
    send_email("test@example.com", "hi from the tour")
except nullrun.NullRunToolBlockedError as exc:
    print(f"BLOCKED:", nullrun.format_user_message(exc))

Run it again. The dashboard shows a decision = block row with error_code = NR-T001, wire = TOOL_BLOCKED. New organizations ship with a permissive default policy; if your admin has added a stricter default, you may see additional blocks.

To allow send_email, open Policies in the sidebar, find the tool-block rule that matches send_email, and either narrow the pattern or scope it to a different workflow.

Step 6 — Raise the budget and try again

Back in the dashboard:

1. Open the tour-agent workflow and stay on the Overview tab.
2. In the budget card, raise the cap to $5.00 (500 cents).
3. Save.

Re-run tour_agent.py. The loop now completes all 20 calls. The Overview tab's spend bar shows ~$0.40 used (depending on token counts), and the progress bar sits at ~8%.

What next?

You want to…	Open
Understand the gate in depth	Concepts → Circuit breaker
Wire up multiple agents	How-to → Run multiple agents
Add an approval flow for sensitive tools	Concepts → Human approval
Stream responses	How-to → Stream responses
Deploy to production behind your gateway	Configuration → Behaviour

Where to send feedback

Email support@nullrun.io with the dashboard's Help → Send feedback form filled in. Include the workflow ID (top-right of any dashboard page) and the failing row's decision_id.
